Tuberk Toraks 2014;62(3):199-206
Akut pulmoner tromboemboli sonrası gelişen kronik tromboembolik pulmoner hipertansiyon sıklığı
İsmail KAYAALP1, Yelda VAROL1, Pınar ÇİMEN1, Fatma DEMİRCİ ÜÇSULAR1, Nuran KATGI1, Mehmet ÜNLÜ1,
Cenk KIRAKLI1, Salih Zeki GÜÇLÜ1, Oktay ERGENE2
1 İzmir Dr. Suat Seren Göğüs Hastalıkları ve Cerrahisi Eğitim ve Araştırma Hastanesi, Göğüs Hastalıkları Bölümü,
1 Department of Chest Diseases, Izmir Dr. Suat Seren Chest Diseases and Surgery Training and Research Hospital,
2 Dokuz Eylül Üniversitesi Tıp Fakültesi, Kardiyoloji Anabilim Dalı, İzmir, Türkiye
2 Department of Cardiology, Faculty of Medicine, Dokuz Eylul University, Izmir, Turkey
Akut pulmoner tromboemboli sonrası gelişen kronik tromboembolik pulmoner hipertansiyon sıklığı
Giriş: Kronik tromboembolik pulmoner hipertansiyon (KTEPH) ciddi morbidite ve mortaliteye neden olan azımsanmayacak sıklıkta gelişen, tedavi edilebilir, kısmen de önlenebilir bir komplikasyondur. Çalışmamızda; tanıda ventilasyon/perfüzyon (V/Q) sintigrafisi ile çok dedektörlü bilgisayarlı tomografi (ÇDBT) pulmoner anjiyografi gibi noninvaziv tetkikler kullanılarak akut pulmoner tromboemboli (PTE) sonrasında gelişen KTEPH sıklığının saptanması amaçlanmıştır.
Materyal ve Metod: Ocak 2010 ile Aralık 2012 tarihleri arasında ilk kez pulmoner emboli tanısı konulan 99 hasta çalışmaya dahil edildi. En az üç ay antikoagülan tedavi almış hastalara transtorasik ekokardiyografi (TTE) uygulandı (n= 85). TTE'de, SPAP değeri > 30 mmHg olarak ölçülen ve/veya sağ kalp işlev bozukluğu bulgusu saptanan 31 (%34.4) olguya, ÇDBT pulmoner anjiyografi ile birlikte V/Q sintigrafisi yapıldı. ÇDBT pulmoner anjiyografide rezidüel kronik trombüs bulguları ve/veya V/Q sintigrafisinde segmental perfüzyon defekti ya da defektleri olan olgulara, sağ kalp kateterizasyonu (SKK) yapıldı (n= 7). Ortalama PAB ölçüldü ve vazoreaktivite testi yapıldı. SKK esnasında nonkontrast madde pulmoner arterlere verilerek pulmoner arteriyografi görüntüleri alındı.
Bulgular: PTE tanılı hastaların 44'ü erkek, 55'i kadındı. Olguların yaş ortalaması 60 ± 17 ve median yaş 49 (38-67)'du. Olguların %63.6'sında en az bir tane olmak üzere ek hastalık anamnezi, %91.9'unda en az bir tane PTE risk faktörü mevcuttu. Tanı anında 24 olgu masif, 61 olgu submasif ve 14 olgu nonmasif PTE olarak değerlendirildi. On dokuz (%19.1) olguya trombolitik tedavi uygulandı. Diğer 80 (%80.8) olguya INR değeri terapötik aralıkta olacak şekilde standart antikoagülan tedavi verildi. Olguların %79.8'inde tromboemboli yaygınlığı bilateral, %21.8'inde unilateraldi. Minumum 1 maksimum 2 yıl takip sonrasında 5 (%5.5) hasta KTEPH tanısı aldı. KTEPH gelimi ile yaş, PTE etiyolojik risk faktörü, trombolitik tedavi almak, PTE tipi ve yaygınlığı arasında univaryan analizde istatistiksel anlamlılık saptanmadı.
Sonuç: PTE'nin önlenebilir bir komplikasyonu olan KTEPH takip edilen hastalarda oldukça yüksek bir insidansta saptanmıştır.
Anahtar kelimeler: Pulmoner emboli, kronik tromboembolik pulmoner hipertansiyon, görüntüleme yöntemleri
The incidence of chronic thromboembolic pulmonary hypertension secondary to acute pulmonary thromboembolism
Introduction: Chronic thromboembolic pulmonary hypertension (CTEPH) is a curable and partially preventable complication, with a substantial incidence, leading to severe morbidity and mortality. The aim of the present study was to find out the incidence of CTEPH secondary to acute pulmonary thromboembolism (PTE) using non-invasive procedures such as ventilation/perfusion (V/Q) scintigraphy and pulmonary multidetector CT (MDCT) angiography in determining the diagnosis of CTEPH.
Materials and Methods: The study included a total of 99 patients diagnosed with initial PTE between January 2010 and December 2012. The patients who received anticoagulant therapy at least for three months underwent transthoracic echocardiography (TTE) (n= 85). Thirty one patients with a SPAP value > 30 mmHg and/or an evidence of right ventricular dysfunction in TTE underwent MDCT pulmonary angiography and V/Q scintigraphy. The patients with an evidence of residual chronic thromboembolic signs in MDCT pulmonary angiography and/or segmental perfusion defect(s) in V/Q scintigraphy underwent right heart catheterization (RHC) (n= 7). The mean PAP was measured, and a vasoreactivity test was performed. During RHC, a non-contrast medium was delivered to the pulmonary arteries for pulmonary arteriography imaging.
Results: Among patients diagnosed with PTE, 44 were male and 55 were female. The mean age was 60 ± 17 years. Of these patients, 63.6% had history of at least one additional disease and at least one risk factor for PTE. During diagnosis, 24 subjects were considered having massive, 61 submassive and 14 non-massive PTE. Nineteen (19.1%) patients received thrombolythic therapy. Other 80 (80.8%) patients received standard anticoagulant therapy with an INR value within the therapeutic range. In 79.8% of patients, thromboembolism was bilateral, and it was unilateral in 21.8%. After a minimum of 1 year, and maximum of 2 years follow up five subjects (5.5%) were diagnosed with CTEPH. The univariate analysis showed no association between the development of CTEPH and factors like; age, etiologic risk factors for PTE, receiving thrombolytic treatment, prevalence and type of PTE.
Conclusion: Potentially preventabl complication of pulmonary embolism; CTEPH, had a substantial incidence during follow-up.
Key words: Pulmonary embolism, chronic thromboembolic pulmonary hypertension, imaging techniques
Chronic thromboembolic pulmonary hypertension (CTEPH) is a serious condition characterized by intraluminal thrombus organization and fibrous stenosis or complete obliteration of the pulmonary arteries. CTEPH is commonly seen as a long-term complication of acute pulmonary embolism (PE) (1). The incidence of CTEPH has been reported by different studies to be between 0.1% and 8.8% in patients after acute PE (2-4). The diagnosis of CTEPH is often delayed since the symptoms are non-specific (5-7).
The first step towards making the correct diagnosis is the assessment of regional lung perfusion defects, which is commonly carried out by scintigraphic planar lung scans. Planar perfusion scintigraphy is useful for initial evaluation of CTEPH (5-7).
Contrast-enhanced CT pulmonary angiography (CTPA) is also commonly used for evaluation of acute PE and CTEPH. Over the past few years, CT scanning has proven its diagnostic value in cases of acute pulmonary embolism (9-11). It has also been proposed as a reliable and less invasive tool for the diagnosis of CTEPH (12). Because CTEPH is a relatively common, life-threatening complication of pulmonary embolism, diagnostic and therapeutic strategies for early detection and prevention of CTEPH are needed. Based on this, the aim of our study was to determine the incidence of CTEPH after acute PTE with ventilation/perfusion (V/Q) scintigraphy and/or with pulmonary multidetector CT (MDCT) angiography.
MATERIALS AND METHODS
The present prospective study included patients who were diagnosed with PTE between January 2010 and December 2012, prescribed with an outpatient treatment plan and who received anticoagulant therapy at least for 3 months. Those patients who were diagnosed between January 2010 and January 2012 were followed for a minimum of 1 year, and maximum of 2 years. We examined type of PTE at diagnosis, prevalence and treatment regimen, age, sex, medical history of concomittant diseases, the stage according to the New York Heart Association (NYHA) Functional Classification and etiologic risk factor(s).
A Doppler ultrasonography exam of the bilateral lower extremity venous system was performed using the General Electric Logiq 5 Pro Doppler machine. The exam covered the bilateral inguinal area from the main femoral vein to the level of cruris vein using a linear transducer with a variable frequency, ranging from 5 to 10 megahertz. During the examination, patency of both main femoral, superficial femoral, deep femoral, popliteal and saphenousveins was evaluated by a color Doppler based on the compression of vein in response to the transducer. The flow in cruris veins was evaluated by a maneuver applied on the gastrocnemius muscle.
Each patient underwent a control TTE examination, which was performed by expert cardiologist sapproximately at the end of one year follow up. In TTE, patients with a SPAP ≤ 30 mmHg and without any evidence of right heart failure and chronic residual thrombus by MDCT pulmonary angiography were considered negative prior to any further examination. In TTE, 31 patients with a SPAP > 30 mmHg and/or any evidence of right heart failure (34.4%) underwent V/Q scintigraphy along with MDCT pulmonary angiography.
MDCT pulmonary angiography examinations were performed with a 16 slice-Philips MX and Philips Brilliance-6 multidetector row scanner. Intravenous contrast agent was administered using the Mallinckrodt and Optistar BT automatic injector systems, respectively. A guiding image was obtained with the patient in supine position to determine the area of study from the apex to the diaphram. During imaging, a 60-90 mL (1 mL/kg) non-ionic contrast agent (370 mg/mL) was delivered via an automatic injector through the vascular access established by a 20 gauge cannula placed into an antecubital vein at a rate of 3.5 mL/sec. A reference image was obtained at the level of the main pulmonary artery by a 16- slice Philips MXscanner (thickness of section; 5 mm, interslice distance; 2.5 mm; threshold; 80, collimation; 16 x 1.5, pitch; 0.9, rotation time; 0.75 sec and FOV; wide) and cross sectional images were obtained using predefined parameters at 250 mA/sec. During imaging with Philips Brilliance- 6 scanner,cross sectional images were obtained with a delayed time of 12 to 16 secs from the start of injection depending on the cardiac performance status of the patient (thickness of section: 5 mm; interslice distance: 2.5 mm; collimation: 6 x 3; pitch: 0.9; rotation time: 0.75 sec; FOV: wide) using predefined parameters at 220 mA/sec. All MDCT pulmonary angiography examinations were performed in the craniocaudal direction in a single breath-hold period.
Pulmonary perfusion scintigraphy was performed witha Philips Brightview dual-head gamma camera following intravenous administration of Tc-99m macroaggregated albumin based on the principle of radiopharmaceutical's distribution within the lung alveoli/capillaries in parallel to the distribution of pulmonary arteries. Injection was made during deep and regular breathing in lying position. The imaging included anterior, posterior, left lateral, right lateral, left posterior oblique, right posterior oblique, left anterior oblique, and right anterior oblique positions.
Pulmonary ventilation scintigraphy was also performed with a Philips Brightview dual-head gamma camera. The patients underwent imaging after inhalation ofa mixture of Tc-99m diethylene triamine penta acetic acid with 3-4 L/min O2 in a ventilation apparatus for 10 minutes. The imaging included anterior, posterior, left lateral, right lateral, left posterior oblique, right posterior oblique, left anterior oblique, and right anterior oblique positions. All V/Q scintigraphies were evaluated based on the modified PIOPED criteria (13,14).
Both examinations excluded the patients with no evidence of chronic residual thrombus and/or segmental perfusion defect for CTEPH. Any patient with an evidence of chronic residual thrombus during MDCT pulmonary angiography and/or segmental perfusion defect(s) during V/Q scintigraphy underwent right heart catheterization using a Siemens Artis Zee DSA system. Pulmonary artery was accessed through the femoral vein with a 6 French catheter. The mean PAP was measured, and a vasoreactivity test was performed. During RHC, a non-contrast medium was delivered to the pulmonary arteries for pulmonary arteriography imaging.
For evaluations, we used Statistical Package for the Social Sciences Program (SPSS 17.0 for Windows, SPSS Inc., Chicago, Il., USA). Contiunous variables and all sub-groups were tested for normal distribution. A correlation coefficient was calculated to evaluate the relationship between numeric variables. For all tests, the error rate was alpha 5%, with a two-tailed test. If the p value was less than 0.05, the difference between the groups was considered statistically significant.

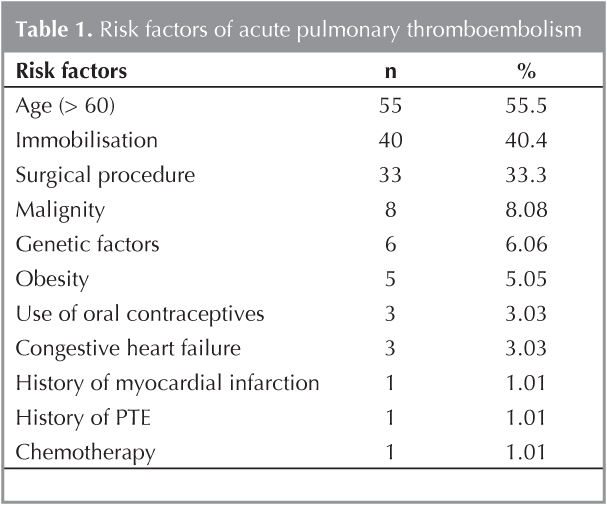

Among patients with PTE, 44 were male, and 55 were female. The mean age was 60 ± 17 years. Of these patients, 63.6% had at least one additional disease.The major risk factor for most of the patients was advanced age (55.5%), followed by immobilization and surgical intervention, respectively. There was at least one risk factor of PTE in 91.9% of our patients (Table 1).
Nine patients died during the follow-up.
During diagnosis, 24 subjects were considered having massive, 61 submassive and 14 non-massive PTE. Nineteen (19.1%) patients received thrombolythic therapy. Other 80 (80.8%) patients received standard anticoagulant therapy with an INR value within the therapeutic range. In 79.8% of patients, thromboembolism was bilateral, and it was unilateral in 21.8%. Thirty four (34.3%) patients had TTE during the diagnosis and the median estimated SPAP was 49 mmHg (range 38-67).
Fifty one (51.1%) patients underwent Doppler ultrasonography examination of the bilateral lower extremity venous system during diagnosis. Thirty four patients had deep vein thrombosis.
The median time to evaluation for CTEPH in patients who received effective anticoagulant therapy at least for 3 months and who were still on anti-cogaulant therapy was 6 months (range 4-9). The median SPAP was 32 mmHg (range 27-38) in all alive patients during the control examination for TTE. There were 5 patients who could not come to the TTE examination and these patients was selected as dropped patients. Patients who were evaluated for CTEPH were classified according to the NYHA Functional Classification (Table 2).
Eighty five patients who had an acute PTE episode underwent control MDCT pulmonary angiography for CTEPH while 31 patients who had an estimated SPAP > 30 mmHg and/or evidence of right heart disease underwent V/Q scintigraphy along with a MDCT pulmonary angiography. The V/Q scintigraphy results showed high probability in 2 (6.4%) patients , moderate probability in 2 (6.4%) patients, low probability in 7 (22.5%) patients, and normal in 20 (64.5%) patients according to the modified PIOPED criteria.

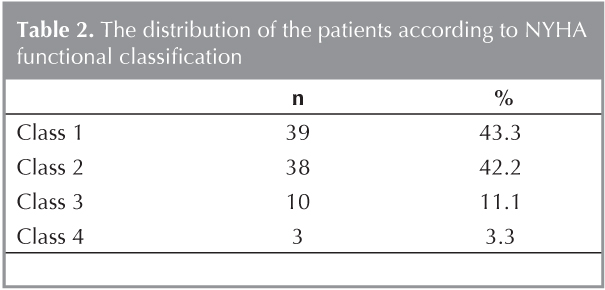

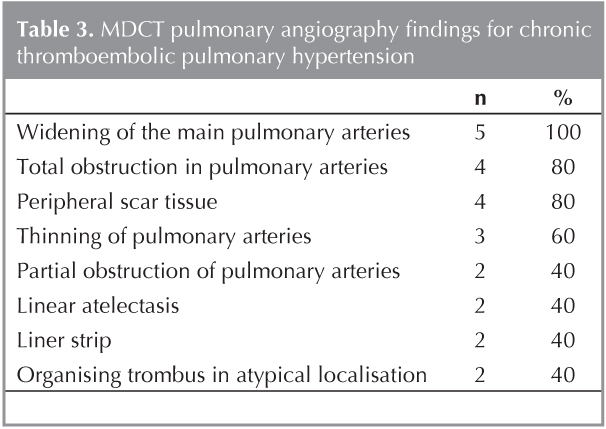

MDCT pulmonary angiography of five patients showed findings consistent with chronic thromboembolism. The findings, the most common being widening of the main pulmonary arteries, included total obstruction in pulmonary arteries, peripheral scar tissue, thinning of pulmonary arteries and partial obstruction, respectively (Table 3).

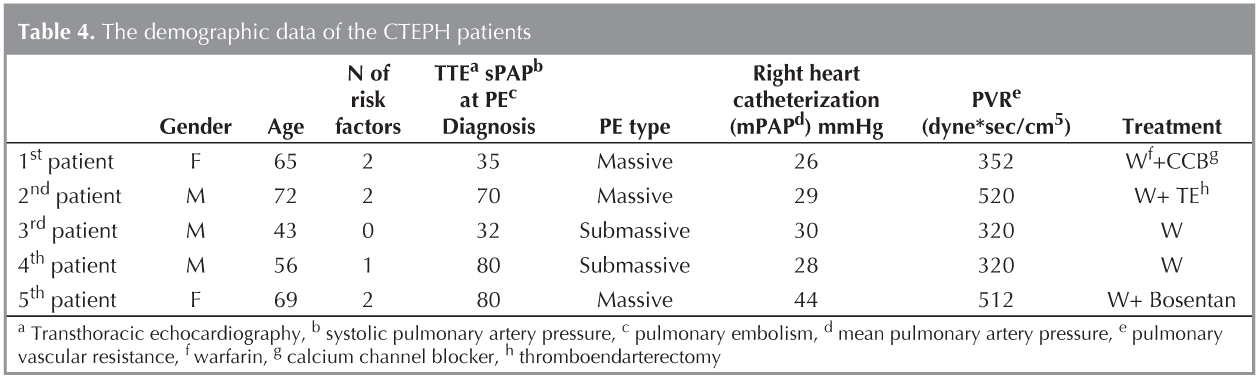

Seven patients underwent right heart catheterization to confirm the diagnosis. The median PAP was 29 mmHg (range 28-34). During RHC, pulmonary DSA was performed in 5 patients, who all showed defects with the contrast dye, consistent with chronic thromboembolism. Five patients were diagnosed with CTEPH (Table 4). The incidence of CTEPH was 5.5%. The univariate analysis showed no association between the development of CTEPH and factors like; age, etiologic risk factors for PTE, receiving thrombolytic treatment, prevalence and type of PTE.
Pulmonary embolism is a clinical condition where pulmonary arteries and/or their branches become occluded by various substances (such as fat particles, foreign bodies, tumor cells), mostly by thrombotic particles getting into the circulation from the thrombi in deep veins of the lower extremity. Quite a number of risk factors have been described by studies on development of PTE, which is a common disease, challenging in diagnosis with a high rate of mortality and morbidity (1,7). Similar to many other studies, in our study the most common risk factors were advanced age, immobilization and surgical intervention respectively.
Although previously CTEPH was known to be a rare complication of PTE, recent studies have shown that the incidence of symptomatic and/or asymptomatic CTEPH is more than previously thought (15,16). Several reports emphasize that attention should be paid to young patients with idiopathic PTE, frequent PTE episodes and larger perfusion defects who may develop CTEPH. In a study by Pengo et al. who evaluated the potential risk factors for CTEPH, a significant association was found with multiple PTE episodes, a larger perfusion defect at the time of diagnosis, younger age and idiopathic presentation of PTE (16). In this study while the univariate analysis showed a significant relationship in those who had thrombolytic treatment, there was no significant relationship in the multivariate analysis between the two arms. It was mainly attributed to the use of thrombolytic treatment mostly in massive PTE. Since there was an increased risk associated with recurrent PTE in those patients with no regular treatment, they claimed that it might be attributed to inadequate treatment. In our study the univariate analysis showed no association between the development of CTEPH and factors like; age, etiologic risk factors for PTE, receiving thrombolytic treatment, prevalence and type of PTE. We believe it might be related with the small numbers of patients with CTEPH we had detected.
In previous studies, the incidence of CTEPH has been reported to be between 0.1% and 3.8% (5-17). Becattini et al. studied 259 patients with PTE to determine the incidence of CTEPH secondary to the initial episode of PTE (18). Each patient received anticogulant therapy, at least for 3 months, and at most for 1 year, with a follow up every three months during the first year, and then every 6 months for the next 3 years. All patients who described persistent dyspnea either at rest or on exertion underwent TTE, during which any patient with a SPAP over 30 mmHg further underwent V/Q scintigraphy and pulmonary arteriography. The patients with a mean PAP ≥ 25 mmHg, normal PKB and arteriographic thromboembolism were considered to have CTEPH (18). In this study including only symptomatic subjects, the incidence of CTEPH was 1%. The INR was within the therapeutic range in more than 75% of the patients, reporting that the incidence associated with their careful anticoagulant therapy was low. Frederikus et al. found pulmonary hypertension in 19 of 866 patients with acute PTE after a follow up of 34 months (19). Four of these 4 (0.57%) patients were diagnosed with CTEPH. In a study by Korkmaz et al. carried out in Turkey, 325 patients with a diagnosis of PTE were followed for an average of 16.3 months (6-50.7 months) (20). Data on recurrence, residual thrombi, mortality and CTEPH were collected. The incidence of CTEPH was 4.6%. The incidence of residual chronic thrombus was 48% at month 3 after the first episode, 27.4% at month 6, and 18.2% at month 12, and they highlighted the significance of close monitoring of patients with PTE for an early diagnosis of CTEPH.
A study carried out by Mi et al. in China found an incidence of 14.4% for CTEPH (21). Similarly the report published by Pepke Zaba in 2010 indicated that the incidence of CTEPH was between 1.3% and 5.1% after one year of PTE treatment, and between 0.8% and 3.8% after 2 years (22). Dentali et al. also evaluated 91 patients with PTE by V/Q scintigraphy and TTE (23). CTEPH was defined as a SPAP > 40 mmHg and presence of a residual perfusion defect in V/Q scintigraphy. All patients were evaluated by TTE at months 6 and 12 after the PTE episode, with CTEPH in 8 patients (with an incidence of 8.7%). Using a questionnaire on symptoms, 4 patients were found to have asymptomatic CTEPH, and 4 other patients symptomatic CTEPH. In our study, the incidence of CTEPH was 5.5%. Two of our patients were asymptomatic. The incidence of CTEPH in our study was comparable to those studies which also included asymptomatic patients. However, the rate was higher when all studies were considered. An analysis of the records showed that our patients had some of their INR follow-up done in hospitals close to their houses as we are a regional hospital. It is difficult for us to affirm whether they received anticoagulant therapy within the therapeutic range since we are unable to have access to their complete INR follow-up. Studies demonstrated that the proportion of patients with INR values below therapeutic range was 20% despite regular INR monitorization (16).
An overview of studies on CTEPH carried out up to date shows that it has a substantial incidence following acute PTE, while recent studies indicate increasing rates. Therefore, we need easily applicable, easily accessible, and less invasive diagnostic tests, with high sensitivity and specificity in order to detect patients accurately and on time. Nistal and Martin define imaging tests as cornerstone of the diagnosis of CTEPH (24). V/Q scintigraphy, TTE, MDCT pulmonary angiography, magnetic resonance imaging pulmonary angiography and pulmonary DSA are unquestionably very convenient imaging methods. However, they cannot be used routinely in all patients. Use of TTE and V/Q scintigraphy is common to exclude CTEPH, which develops secondary to acute PTE. When pulmonary hypertension is suspected, TTE represents the most common initial examination. Detection of tricuspid regurgitation jet and measurement of the maximal jet velocity by Doppler help estimate the SPAP value. The sensitivity and specificity of this method for detection of SPAP are 79-100% and 60-98%, respectively (25). In a study by Boilson et al. with 1000 CTEPH patients who underwent PEA operation, the pre-operative TTE and right atrial and pulmonary artery pressures as measured by RHC were correlated (p < 0.0001) (26). In recent studies it is indicated that the diagnosis of CTEPH can be excluded in patients with unexplained history of PTE or pulmonary hypertension if no perfusion defect is found with V/Q scintigraphy and/or when V/Q scintigraphy shows a normal perfusion (22-27). A literature review showed that moderate and high probability V/Q scintigraphy had a high sensitivity and specificity in the diagnosis of CTEPH (22-28). In a study by Fang et al. of 78 patients with pulmonary hypertension, but no history of congenital heart disease and acute PTE, the sensitivity, specificity and accuracy of a high probability V/Q scintigraphy in the diagnosis of CTEPH were 96.0%, 81.1%, and 86.9%, respectively (28).
MDCT pulmonary angiography is an effective method which determines localization and extent of chronic thrombus, and features of central and peripheral arterial thrombi. It may also provide additional information on collateral circulations, and accompanying parenchymal abnormalities. MDCT pulmonary angiography is well tolerated by patients, being a non-invasive method used both in follow up of the disease and evaluation of postoperative outcomes. The sensitivity of MDCT pulmonary angiography is unstable in the diagnosis of CTEPH. In a study by Pitton et al. who made a comparison with pulmonary DSA, the sensitivity of MDCT pulmonary angiography was 70.4% for segmental branches, and 63.6% for subsegmental branches (29).
In a pivotal study by Soler et al. the SPECT perfusion scintigraphy, which is more sensitive than planar perfusion scintigraphy in detecting the pulmonary perfusion defects, was compared with MDCT pulmonary angiography. SPECT perfusion scintigraphy and MDCT pulmonary angiography were performed in 12 patients with CTEPH who were scheduled for a PEA operation, and then they were compared, considering the pulmonary arteriography as the golden standard. They described 140 obstructed, and 40 unobstructed lung segments. SPECT perfusion scintigraphy identified 62% (87/140) of the obstructed and 72% (29/40) of the unobstructed segments whereas MDCT pulmonary angiography identified 47.8% (67/140) of the obstructed, and 80% (32/40) of the unobstructed segments. They indicated that sensitivity for detecting obstructed segments was significantly higher for SPECT perfusion scintigraphy compared to MDCT pulmonary angiography while MDCT pulmonary angiography was superior in detecting unobstructed segments (30).
The diagnostic algorithm used in our study is consistent with current publications. Not all patients underwent RHC and pulmonary DSA. They were used to confirm the diagnosis of CTEPH in patients with an evidence of residual chronic thrombus by MDCT pulmonary angiography, and patients with an evidence of segmental perfusion defect or defects by V/Q scintigraphy. Limited accessibility to the procedure, being risky, although low, and development of other diagnostic methods resulted in its reduced use. Pulmonary DSA is recently indicated for patients who are surgical candidates for a PEA operation, and it is not used for routine diagnosis.
In conclusion, we found a substantial number of patients with pulmonary embolism, who developed CTEPH during follow-up. Further studies are needed to determine preventable causes of a serious complication like CTEPH, reduce its incidence, and develop non-invasive diagnostic methods.
